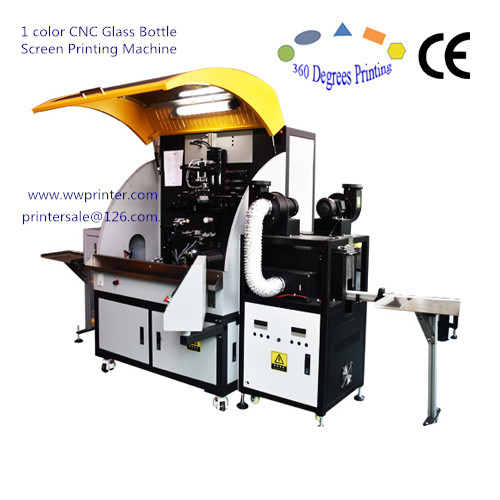

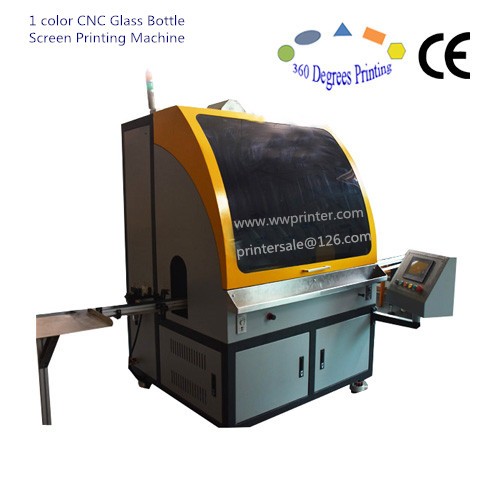

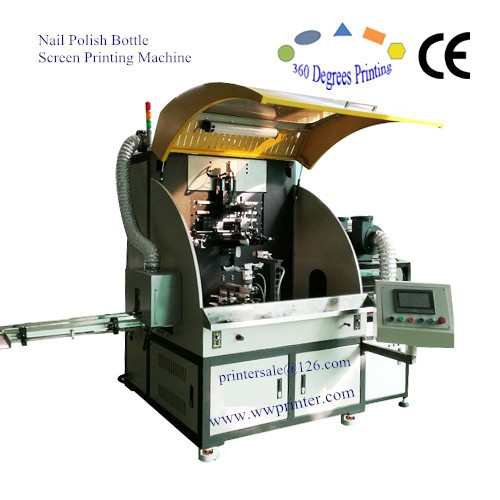

Automatic Glass Vial/Ampoule/Nail Polish Bottle Screen Printer
Product Name: Automatic Glass Vial/Ampoule/Nail Polish Bottle Screen Printer
Model: PT12
Applications:

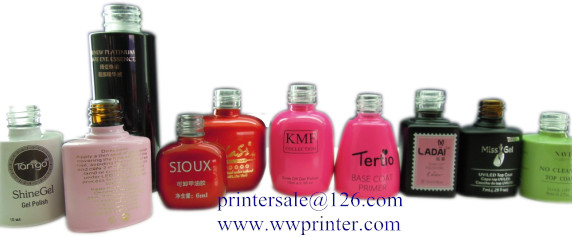

This Automatic Screen Printer for Glass Bottle is fit for printing the nail polish bottle,perfume bottle,glass wine cups, glass mugs ,milk bottles, cream containers etc at high production speed.It can print any shape of containers with 360 degrees printing in once time printing. It is very popularin cosmetic industry and widely used by small and middle enterprises
Features:
1.Automatic loading and unloading system with multi axis servo robot
2.Machine with UV Curing system,so you can dry the bottle directly after printing.
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
5.Fast tooling changeover time, it's about 15 minutes for each color. All parameters automatic setting by touch screen.
6.All servo motors with industrial PLC control & touch screen operation system
7.Can use thermoplastic ink or UV ink.
Parameters:
1.Bottle size: Bottle Dia. 20-70 mm, Bottle Height:30-170 mm
2.Speed: 35-40 pcs/min
3.Air Pressure: 5-6bar
4.Power: 380V 3phase 50Hz 7.5Kw
5.Machine Weight: 600kgs
Product Name: Automatic Glass Vial/Ampoule/Nail Polish Bottle Screen Printer
Model: PT12
Applications:
This Automatic Screen Printer for Glass Bottle is fit for printing the nail polish bottle,perfume bottle,glass wine cups, glass mugs ,milk bottles, cream containers etc at high production speed.It can print any shape of containers with 360 degrees printing in once time printing. It is very popularin cosmetic industry and widely used by small and middle enterprises
Features:
1.Automatic loading and unloading system with multi axis servo robot
2.Machine with UV Curing system,so you can dry the bottle directly after printing.
3.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
5.Fast tooling changeover time, it's about 15 minutes for each color. All parameters automatic setting by touch screen.
6.All servo motors with industrial PLC control & touch screen operation system
7.Can use thermoplastic ink or UV ink.
Parameters:
1.Bottle size: Bottle Dia. 20-70 mm, Bottle Height:30-170 mm
2.Speed: 35-40 pcs/min
3.Air Pressure: 5-6bar
4.Power: 380V 3phase 50Hz 7.5Kw
5.Machine Weight: 600kgs
6.Machine Size:1700*1500* 2100 mm(L*W*H)
Square Perfume Bottle Four Sides Screen printing
Glass Tumbler Cup Printing Machine video
Lipstick Cover 4 sides screen printing video(Lipstick cap 360 degrees printing machine):
