Description

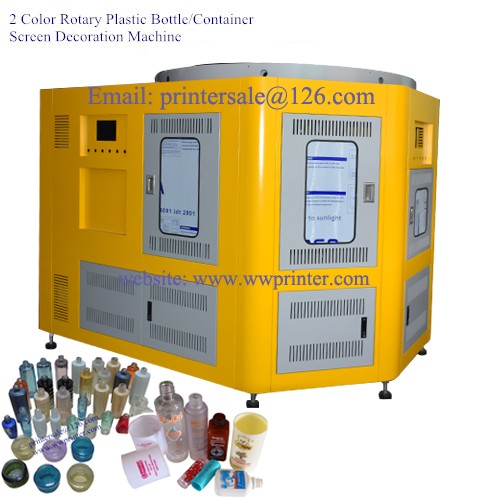

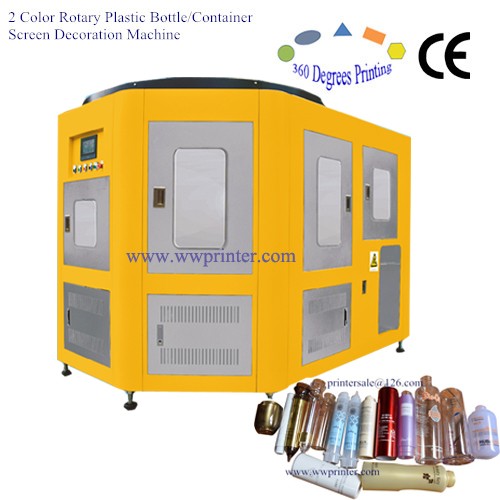

Product Name: 2 Color Rotary CNC Plastic bottle/Container Screen Printing Machine
Model: CNC02Applications:
It's Automatic LED UV Plastic Bottle Screen Printing Machine with two colors. The machine is full servo with Flame
treatment system.It can print cylinder,square,oval and flat of Plastic tubes,containers and bottles etc.
Features:

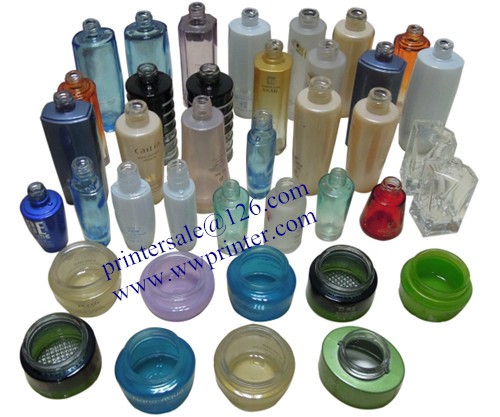

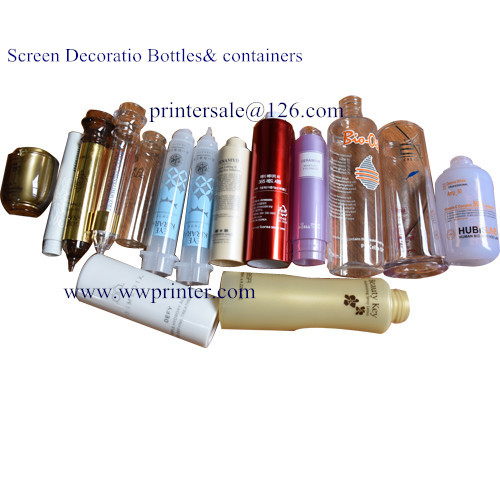

1.Our Automtatic Screen printing machine can print plastic and glass bottles,containers etc
2.Can 360 degrees printing any shape even its sqaure shape.
3.Automatic loading and unloading system
4.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
5.Automatic printing system with all servo driven: printing head, mesh frame, rotation,container
up/down all driven by servo motors.
6.All tooling with individual servo motor driven for rotation
7.Fast tooling changeover time, All parameters automatic setting by touch screen.
8.All servo motors with industrial PLC control & touch screen operation system, it is available for furture
maintenance and program upgrading by romote controlling.
9.Safety operation with CE
Options:
1.Camera vision system to check the mold line for cylindrical bottles, to avoid printing on the line,You can choose
use one camera or two cameras on the machine
Parameters:
A: Lay-on Belt
Max.Printing size: Bottle Diameter:φ15mm—φ40mm Bottle height: 20-150mm
B.Stand Up Belt
Max.Printing size: Bottle Diameter:φ40mm—φ90mm Bottle height: 50-300mm
1:Printing Speed: 35-40 pcs/min
2.Air Pressure: 6-7 Bar
3.Net Weight: 1200 Kgs
4.Power: 380V 50Hz 15Kw
5.Machine Packing Size(L*W*H):2650*2180*2250mm
Full Servo Rotary Screen Printing Machine for Cosmetic Container video:
2 color Wine glass bottle Printing video:

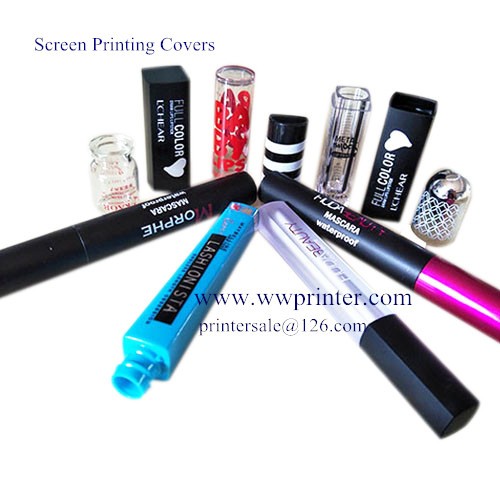

Screen Printing Plus hot stamping for lipstick cover printing video:
