5 Color Automatic UV Bottle Screen Printing Machine
Product Name: 5 Color Automatic UV Bottle Screen Printing Machine
Model: CNC05
Applications:
5 Color Automatic UV Bottle Screen Printing Machine is a full servo screen printer.It can print all shapes of glass and plastic containers with 360 degrees.This glass bottle screen printing machine can print glass & plastic cups,mugs,bottles with 5 color all around in one time printing.It is suitable for glass bottle printing with thermoplastic ink, UV ink or LED UV ink. It's popular used in wine bottle and cosmetic bottle industry's screen printing.This Automatic UV bottle screen printing machine is controlled by high accurate indexer,fully servo driven system.Vision system and mechanical registration optional.
Features:

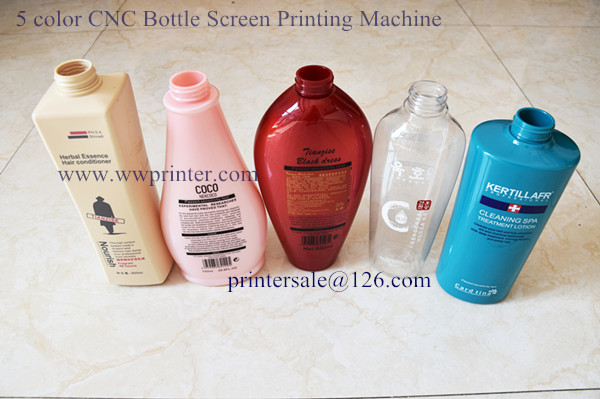

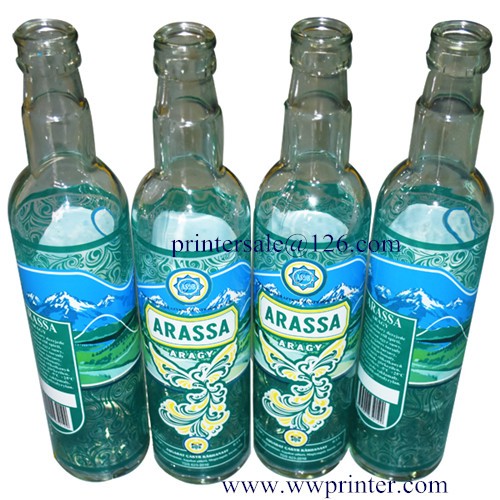

1.Our Automatic UV Glass Bottle Screen Printer can print plastic and glass bottles,glass cups,plastic bottles,containers etc
2.Can 360 degrees printing any shape even its square shape.
3.Flame treatment system for best adhesion on glass for UV ink printing
4.It can decorate container with or without ramp which is for Color registration.
5.Safety operation with CE; Automatic loading and unloading system
6.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
7.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container
up/down all driven by servo motors.
8.All tooling with individual servo motor driven for rotation
9.Fast tooling changeover time, All parameters automatic setting by touch screen.
10.All servo motors with industrial PLC control & touch screen operation system,it is available for further
maintenance and program upgrading by remote controlling.
Options:
1.Camera vision system to check the mold line for cylindrical bottles,to avoid printing on the line,You can choose use one camera or two cameras on the machine.
2.It can be equipped with heating system for thermo plastic ink.
Parameters:
1.Bottle size: Bottle Dia.30-100 mm, Bottle Height:50-330 mm
2.Speed: 40-45 pcs/min
3.Air Pressure: 6-7 bar
4.Power: 380V 3 phase 50Hz 30Kw
5.Machine Weight: 4000 kgs
Product Name: 5 Color Automatic UV Bottle Screen Printing Machine
Model: CNC05
Applications:
5 Color Automatic UV Bottle Screen Printing Machine is a full servo screen printer.It can print all shapes of glass and plastic containers with 360 degrees.This glass bottle screen printing machine can print glass & plastic cups,mugs,bottles with 5 color all around in one time printing.It is suitable for glass bottle printing with thermoplastic ink, UV ink or LED UV ink. It's popular used in wine bottle and cosmetic bottle industry's screen printing.This Automatic UV bottle screen printing machine is controlled by high accurate indexer,fully servo driven system.Vision system and mechanical registration optional.
Features:
1.Our Automatic UV Glass Bottle Screen Printer can print plastic and glass bottles,glass cups,plastic bottles,containers etc
2.Can 360 degrees printing any shape even its square shape.
3.Flame treatment system for best adhesion on glass for UV ink printing
4.It can decorate container with or without ramp which is for Color registration.
5.Safety operation with CE; Automatic loading and unloading system
6.With LED UV or normal UV curing system;Can use normal ink or thermo plastic ink or LED UV ink.
7.Automatic printing system with all servo driven: printing head,mesh frame,rotation,container
up/down all driven by servo motors.
8.All tooling with individual servo motor driven for rotation
9.Fast tooling changeover time, All parameters automatic setting by touch screen.
10.All servo motors with industrial PLC control & touch screen operation system,it is available for further
maintenance and program upgrading by remote controlling.
Options:
1.Camera vision system to check the mold line for cylindrical bottles,to avoid printing on the line,You can choose use one camera or two cameras on the machine.
2.It can be equipped with heating system for thermo plastic ink.
Parameters:
1.Bottle size: Bottle Dia.30-100 mm, Bottle Height:50-330 mm
2.Speed: 40-45 pcs/min
3.Air Pressure: 6-7 bar
4.Power: 380V 3 phase 50Hz 30Kw
5.Machine Weight: 4000 kgs
6.Machine Packing Size(L*W*H):4300*3850*2250 mm
Automatic UV Bottle Screen Printing Machine for bottles video:

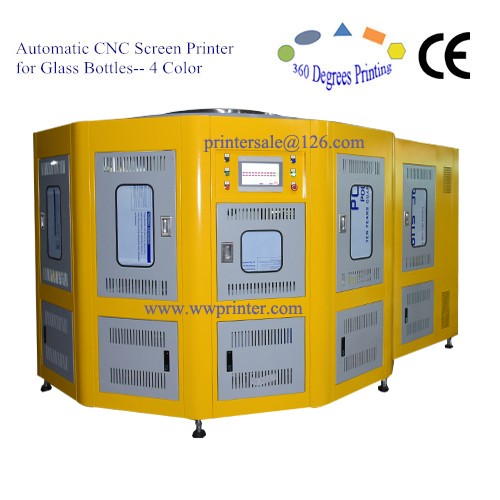

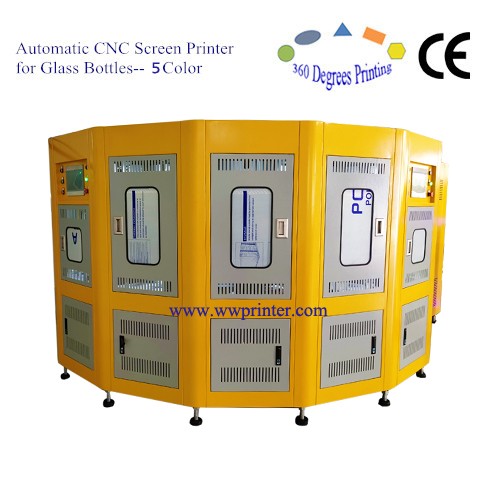

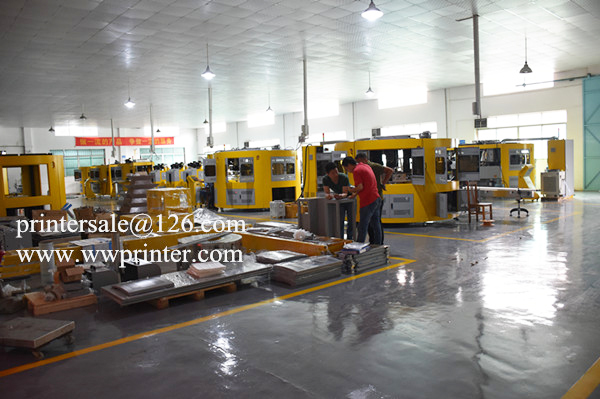

Automatic UV Bottle Screen Printing Machine Photos:
